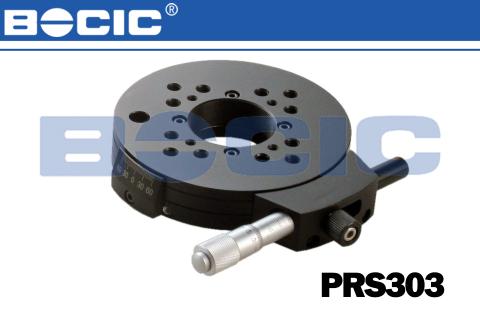

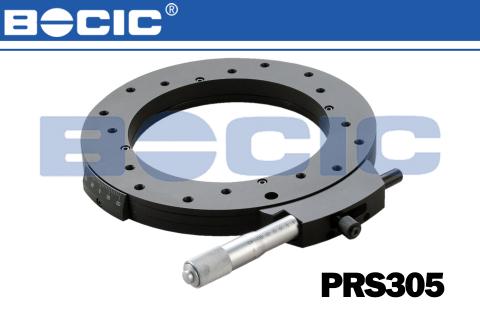

PRS300 series precision rotary stages
1.High precision cross roller bearing axis
allows for smooth motion.
2.Tangentially driven translation withmicrometer
head.
3.High precision differential reading.
4.Thin design,large bearing capacity.
- description
- parameters
|
Model |
PRS303 |
PRS305 |
|
Table size（mm） |
φ100 |
φ200 |
|
Driving |
Micrometer head |
|
|
Reading |
vernier reading |
|
|
Resolution |
4″ |
1″ |
|
Coarse adjustment |
360º |
|
|
Fine adjustment |
±5º |
|
|
Graduation |
1º |
|
|
Minimum reading |
5′ |
|
|
Loading capacity(kg) |
10 |
15 |
|
Weight（kg） |
0. 5 |
1 |
