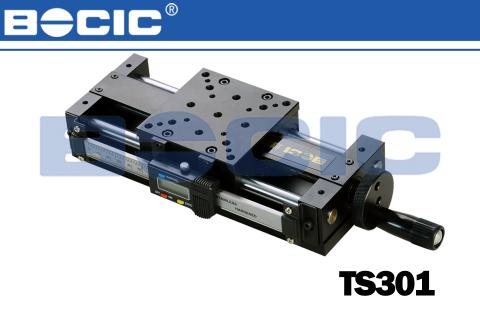

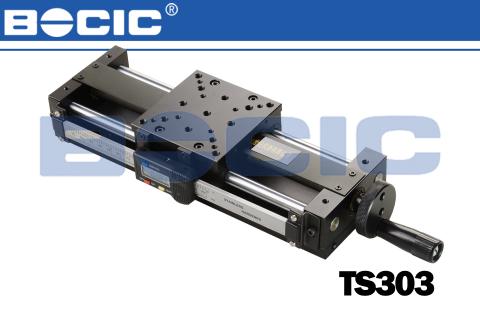

TS300 series precision postitioning stages
1.Actuated with high
precision screw andlinear bearing guide
2.Digital caliper reading
3.Standard threaded
holes on both top and bottom of the stages allow secure mounting to optical
tables, or additional stages for multi-axes translation.
- description
- parameters
|
Model |
TS301 |
TS302 |
TS303 |
TS304 |
|
Travel （mm） |
50 |
100 |
150 |
200 |
|
Table size （mm） |
90×90 |
90×90 |
90×90 |
120×120 |
|
Screw pitch（mm） |
1 |
|||
|
Resolution（mm） |
0.01 |
|||
|
Precision（mm） |
0.01 |
|||
|
Loading capacity (kg) |
20 |
|||
|
Weight （kg） |
1 |
3.2 |
3.5 |
4 |
