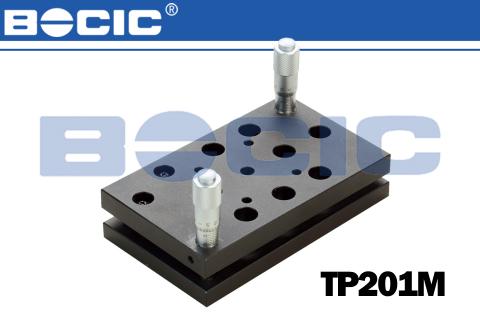

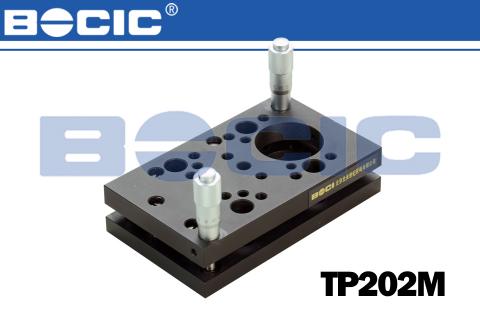

TP201M、TP202M precision tilt platforms
1.The stage provides dual-axis tilt adjustments.It provides a tilt adjustment by double axis
2.Driven with micrometerhead.Driving by micrometerhead
3.Structure design with the point ,line and plane , The structures are stable and have perfect repeatability.
- description
- parameters
|
Model |
TP201M |
TP202M |
|
Table size（mm） |
75×125 |
|
|
Adjustment range |
±5º |
|
|
Graduation（mm） |
0.01 |
|
|
Driving |
Micrometer head |
|
|
Diameterof the center aperture |
－ |
M36×0.75 |
|
Loading capacity (kg) |
6 |
6 |
|
Weight（kg） |
0.55 |
0.55 |
