TMS100 series multi-axis positioning stages
1.Actuated
with high precision ball guide rail,allowing for reliablemovement and high precision.
2.Driven withmicrometer head.
3.Resetspringeliminates return backlash.4.Separate
models are available for right-hand and left-hand use.
- description
- parameters
|

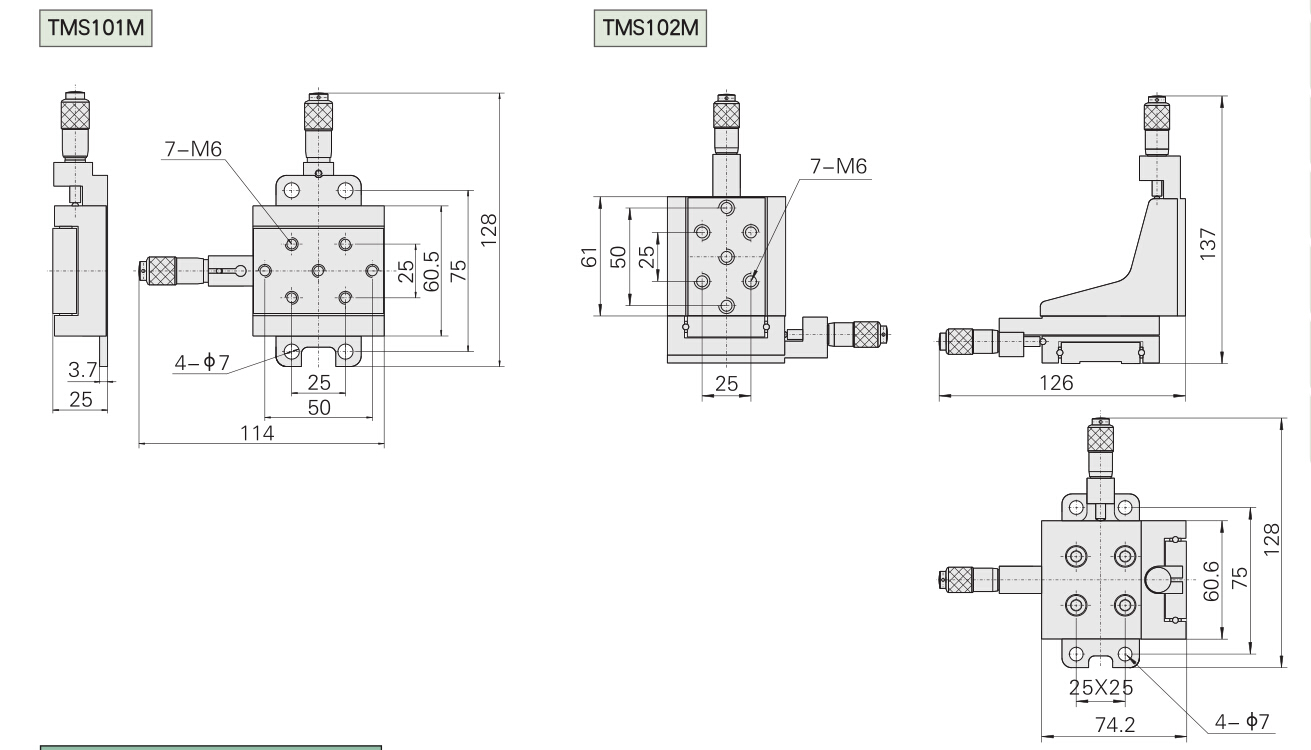

Model |
TMS101M |
TMS102M |
|
Axles |

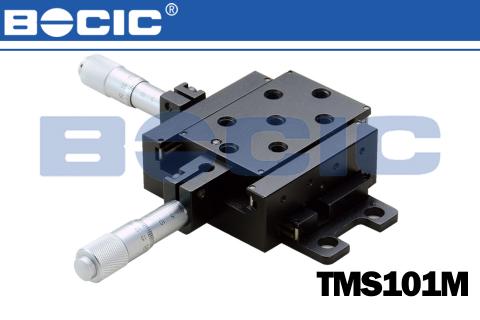

XY two axles |

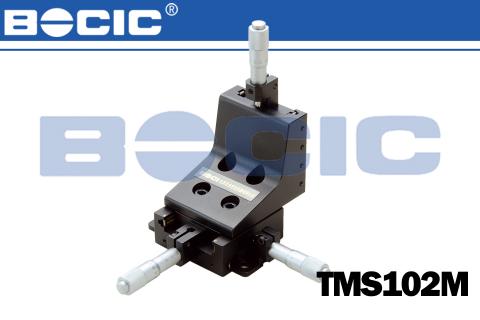

XYZ three axles |
|
Travel （mm） |
13 |
|
|
Driving |
micrometer head |
|
|
Minimum reading（mm） |
0.01 |
|
|
Resolution（mm） |
0.002 |
|
|
Error of swing |
＜30″ |
|
|
Loading capacity (kg) |
5 |
2.5 |
|
Weight （kg） |
0.35 |
0.7 |
