TMS120/TMS220 series multi-axis positioning stages
1.

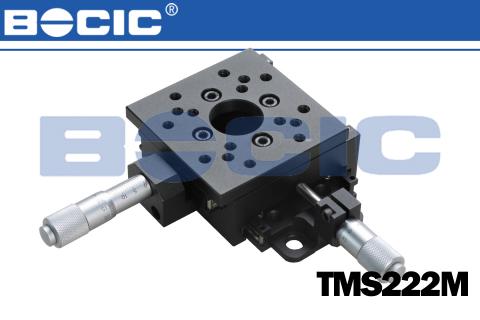

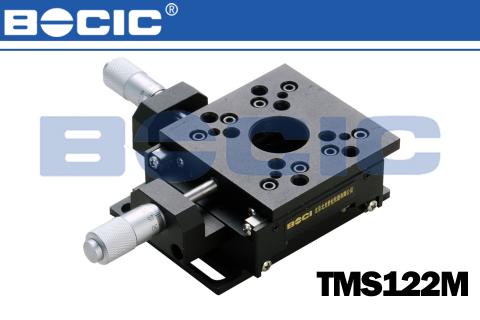

TMS122M uses cross roller bearing guide which provides better linear
translation.TMS222M uses linear ball guide for higher precision. .
2.Driven withmicrometer head.
3. Center aperture design
- description
- parameters
|
Model |
TMS122M |
TMS222M |
|
Axles |
XY two axles |
|
|
Travel （mm） |
13 |
|
|
Driving |
micrometer head |
|
|
Graduation（mm） |
0.01 |
|
|
Resolution（mm） |
0.002 |
|
|
Loading capacity (kg) |
5 |
|
|
Weight （kg） |
0.45 |
0.5 |
