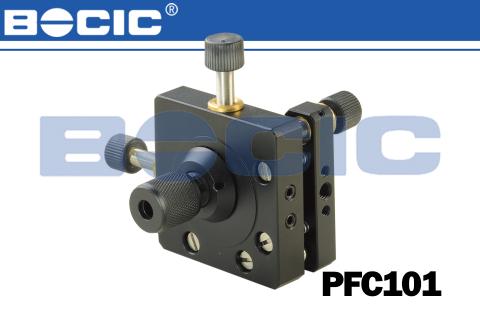

PFC101 precision fiber coupler
1. Can provide the three translations for the fiber and two tilted adjusting ,five degrees of freedom.
2. Tx driving by hand wheel , M6×0.25 fine thread screw driving other four axis
3. Had diameter 6.35mm through hole in center ,it can work hold PFA101 and PFA102 fiber holders
- description
- parameters
|
Model |
PFC101 |
|
|
Applied diameter（mm） |
≤φ6.35 |
|
|
Adjusting range of translation（mm） |
Tx |
6 |
|
Ty |
±2 |
|
|
Tz |
±2 |
|
|
Adjusting range of tilt |
θy |
±4° |
|
θz |
±4° |
|
|
Weight（kg） |
0.2 |
|
