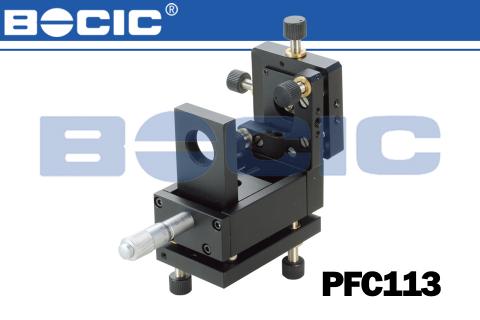

PFC113 precision fiber coupler

1. Increase a micro lens mount on the basis of PFC111 fiber coupler, convenient to use a microscope objective to couple both beam and optical fiber

2. The guide rail adopts precision linear ball, stable movement, high precision

3. Driving by micrometer head, Continuously measure the distance  between the objective and pinhole

4. Biaxial inclination adjustment function

5. There are connecting holes on the lower part, convenient to connect it with the other stages or compose multi dimensional stage.

6. If increase pinhole ,Can change to the spatial filter

7. Standard FC or SMA905 interface

      FC interface         SMA905 interface
