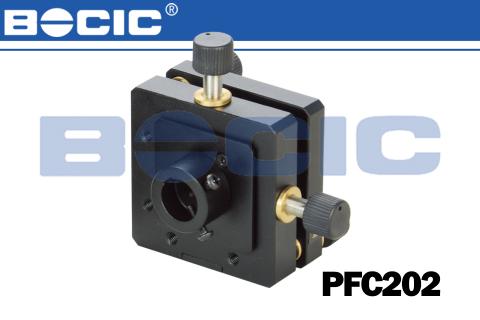

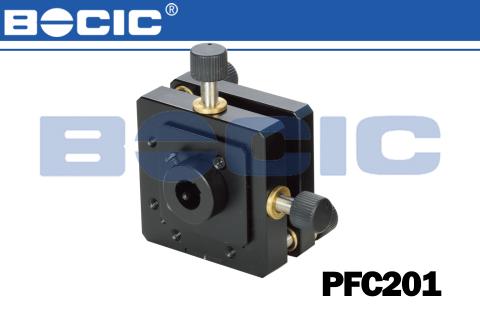

PFC201/PFC202 precision fiber coupler
1. Four axis adjustment
2. M6×25 fine thread screw driving four axis
- description
- parameters
|
Model |
PFC201 |
PFC202 |
|
|
Diameter of central through hole（mm）A |
φ11 |
φ14 |
|
|
Adjusting range of translation（mm） |
Ty |
±2 ±2 |
|
|
Tz |
|||
|
Adjusting range of tilt |
θy |
±4° ±4° |
|
|
θz |
|||
|
Weight（kg） |
0.25 |
||
