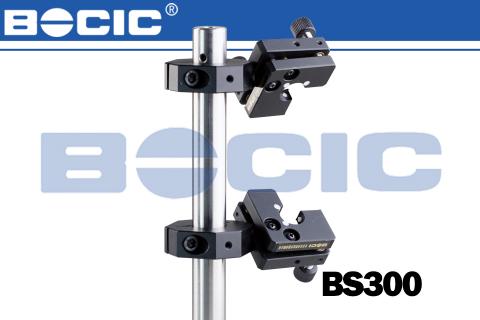

BS300 series beam steeper
1. Can applied multiple diameters of plane mirror or spectroscope
2. Driving by M6×0.25 fine thread screw
3. High quality dished spring reset
4. Used 20mm diameter support post to fix
5. Tilt adjustment by double axis
- description
- parameters
|
Model |
BS301 |
BS302 |
BS303 |
BS304 |
BS305 |
BS306 |
BS307 |
BS308 |
|
|
Lifting height for beam（mm） |
180 |
||||||||
|
Applied diameter |
15 |
20 |
25 |
25.4 |
30 |
40 |
50 |
50.8 |
|
|
Adjusting range of tilt |
θx |
±2.5° |
|||||||
|
θy |
±2.5° |
||||||||
|
Weight（kg） |
0.9 |
||||||||
