GM302 top adjustment optics mount
1. The hand wheel inside the optics mount
2. Two dimensional tilt adjustment
3. M6×0.25 fine thread screw adjustment
4. Support of lens will be by three rigid PTFE
- description
- parameters
|

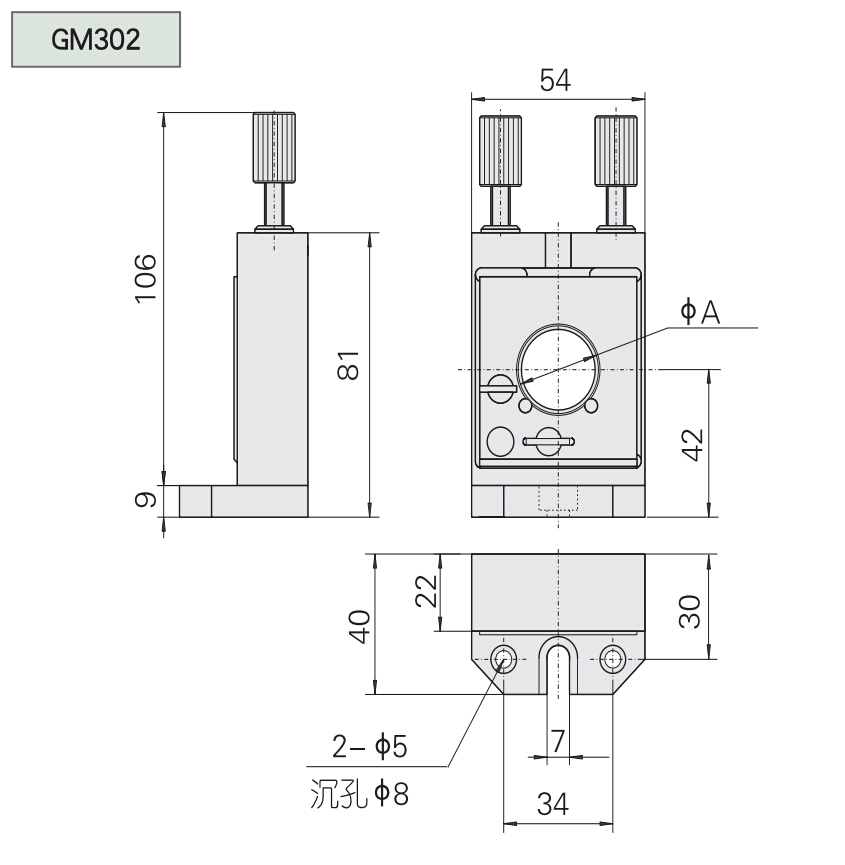

Model |
GM302 |
|
|
A Applied diameter（mm） |
Φ25/Φ25.4 |
|
|
Adjusting rang of tilt |
θy |
±3° |
|
θz |
±3° |
|
|
Weight（kg） |
0.3 |
|
