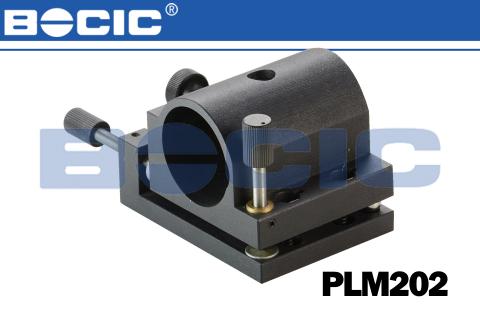

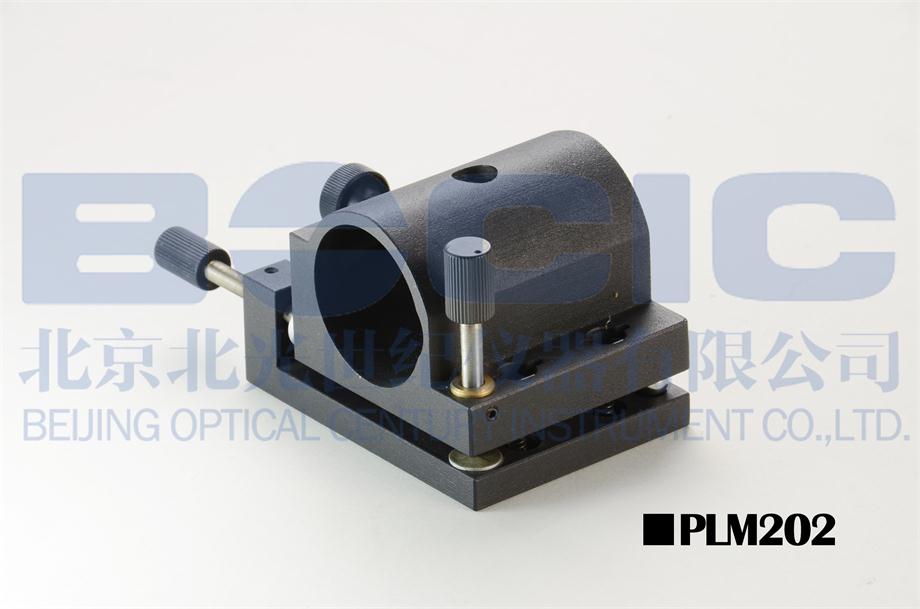

PLM202 precision laser mount
1. Provides two dimensional adjustment of tilt
2. It can clamp different diameter of the laser diode or cylinder
3. Driving by fine thread screw, spring reset
- description
- parameters
|
Model |
PLM202 |
|
|
Applied diameter（mm） |
Φ45（max） |
|
|
Adjusting range（mm） |
θy |
±5° |
|
θx |
aa±5° |
|
|
Weight（kg） |
0.7 |
|
