RCA200 rail carriers
1. Used with RA200 series optical sliding rail and can be combined various adjusting mounts into a coaxial optical system
2. A rigid locking hand wheel with plastic head, firm locking, not to hurt the slide rails
3. Mounting hole with a variety of standard hole position, strong applicability

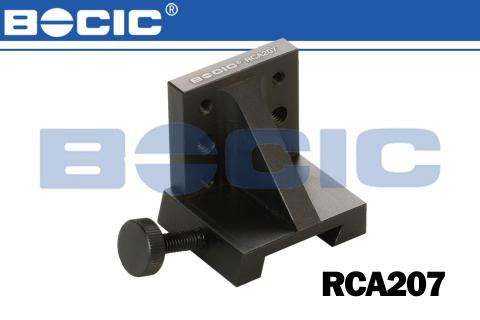

4. RCA207 vertical mounting side perpendicular to the rail

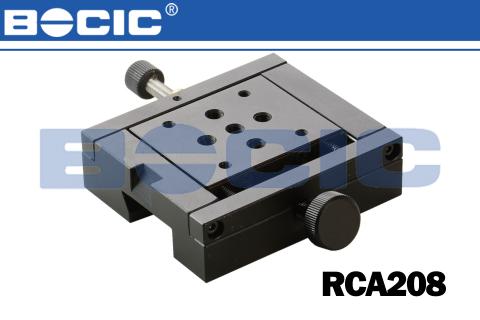

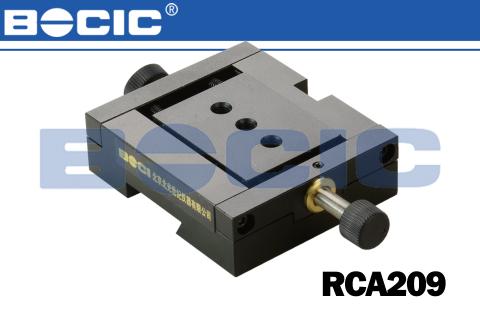

5. RCA208 and RCA209 rail carriers can be adjustment on transverse
6.Smaill size design
- description
- parameters
|
Model |

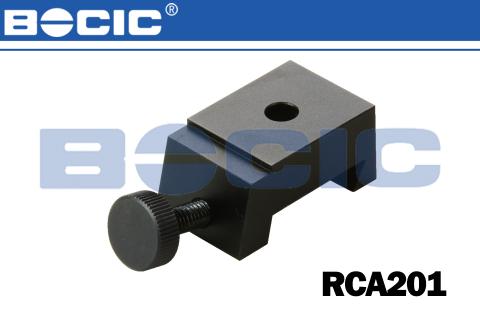

RCA201 |

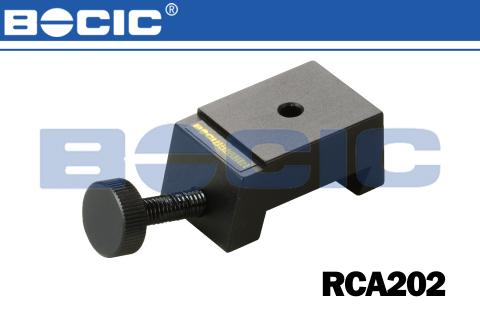

RCA202 |

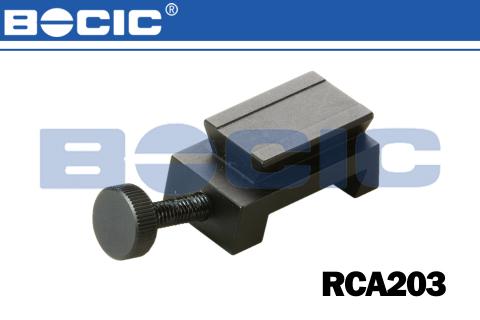

RCA203 |

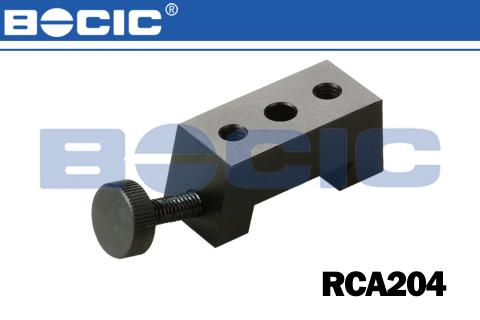

RCA204 |

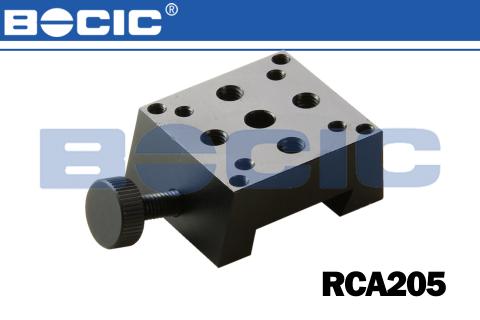

RCA205 |
RCA207 |
RCA208 |
RCA209 |
|
Table size (mm） |
30×25 |
30×25 |
21×30 |
40×25 |
40×40 |
- |
60×46 |
38×46 |
|
Fine adjustment（mm） |
- |
- |
- |
- |
- |
- |
±5 |
±5 |
|
Weight（kg） |
0.05 |
0.05 |
0.05 |
0.05 |
0.1 |
0.1 |
0.5 |
0.3 |
