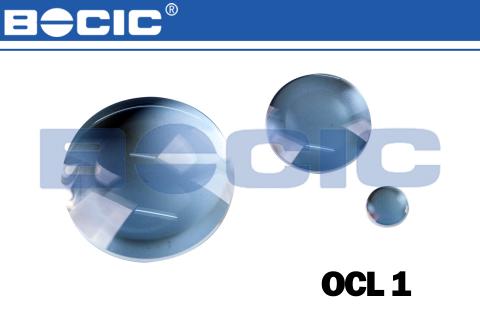

OCL1 series planoconvex lens

    1. Material: K9 optical glass or fused silica

    2. Design Wavelength: 587.6nm

    3. Diameter Tolerance: +0.0/-0.1mm

    4. Center Thickness Tolerance: ±0.2mm

    5. Surface Figure: <λ/4@632.8nm

    6. Focal Length Tolerance: ±2%

    7. Centration: 3 arc min

    8. Bevel0.2mm×45°

  • description
  • parameters

OCL1 series planoconvex lens




1. Material: K9 optical glass or fused silica

2. Design Wavelength: 587.6nm

3. Diameter Tolerance: +0.0/-0.1mm

4. Center Thickness Tolerance: ±0.2mm

5. Surface Figure: <λ/4@632.8nm

6. Focal Length Tolerance: ±2%

7. Centration: 3 arc min

8. Bevel0.2mm×45°

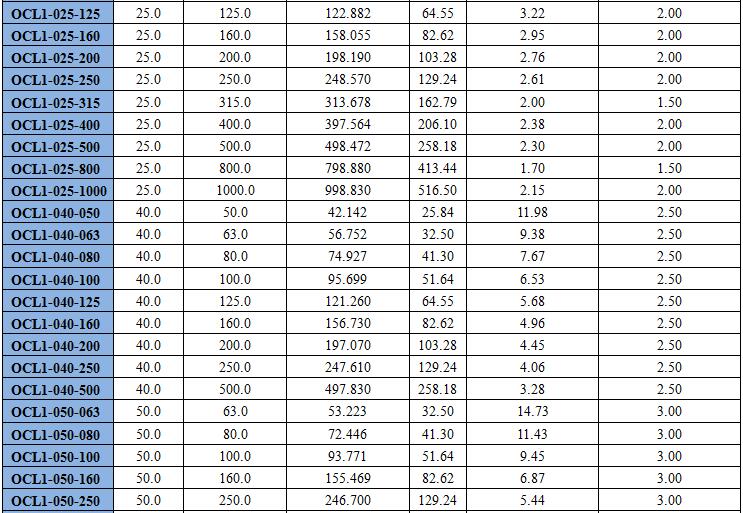

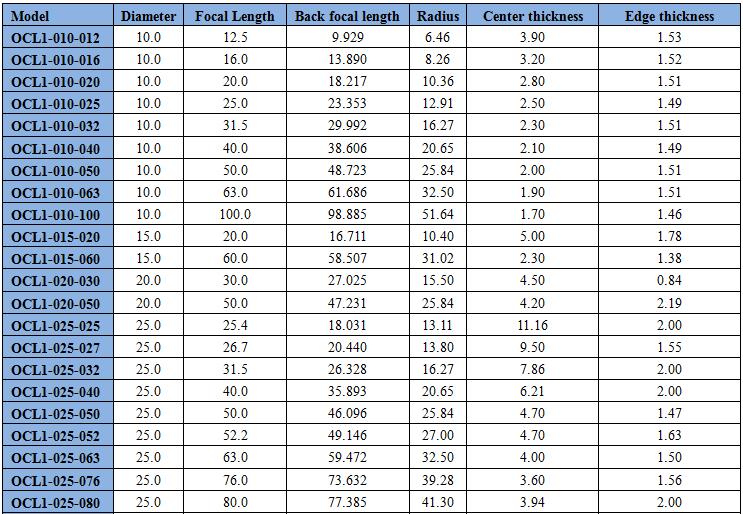

PS: Φ- Diameter,R1- Radius,Tc- Center thickness,Te- Edge thickness,f- Focal Length,fb- Back focal length
