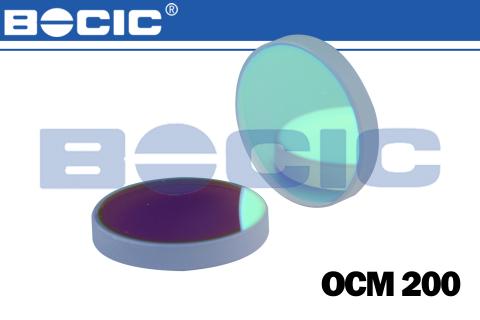

OCM200 series broadband dielectric mirror
High Reflectivity, Ravg>99%, AOI 0-45deg
Wide Working Band
- description
- parameters
|
Model |
Size（mm） |
Thickness(mm) |
Wavelength(nm) |
AOI(Deg) |
|
OCM201 |
25.4 |
6.35 |
450 - 700 |
0 - 45 |
|
OCM202 |
25.4 |
6.35 |
650 - 1000 |
0 - 45 |
|
OCM203 |
25.4 |
6.35 |
1000 - 1400 |
0 - 45 |
|
OCM204 |
12.7 |
3 |
450 - 700 |
0 - 45 |
|
OCM205 |
50.8 |
6.35 |
450 - 700 |
0 - 45 |
|
OCM206 |
12.7 |
3 |
670 - 905 |
0 - 45 |
|
OCM207 |
50.8 |
6.35 |
670 - 905 |
0 - 45 |
|
OCM208 |
12.7 |
3 |
750 - 1100 |
0 - 45 |
|
OCM209 |
25.4 |
6.35 |
750 - 1100 |
0 - 45 |
|
OCM210 |
50.8 |
6.35 |
750 - 1100 |
0 - 45 |
|
OCM211 |
12.7 |
3 |
1480 - 1550 |
0 - 45 |
|
OCM212 |
25.4 |
6.35 |
1480 - 1550 |
0 - 45 |
|
OCM213 |
50.8 |
6.35 |
1480 - 1550 |
0 - 45 |
|
OCM214 |
12.7 |
3 |
350 - 400 |
0 - 45 |
|
OCM215 |
25.4 |
6.35 |
350 - 400 |
0 - 45 |
|
OCM216 |
50.8 |
6.35 |
350 - 400 |
0 - 45 |
