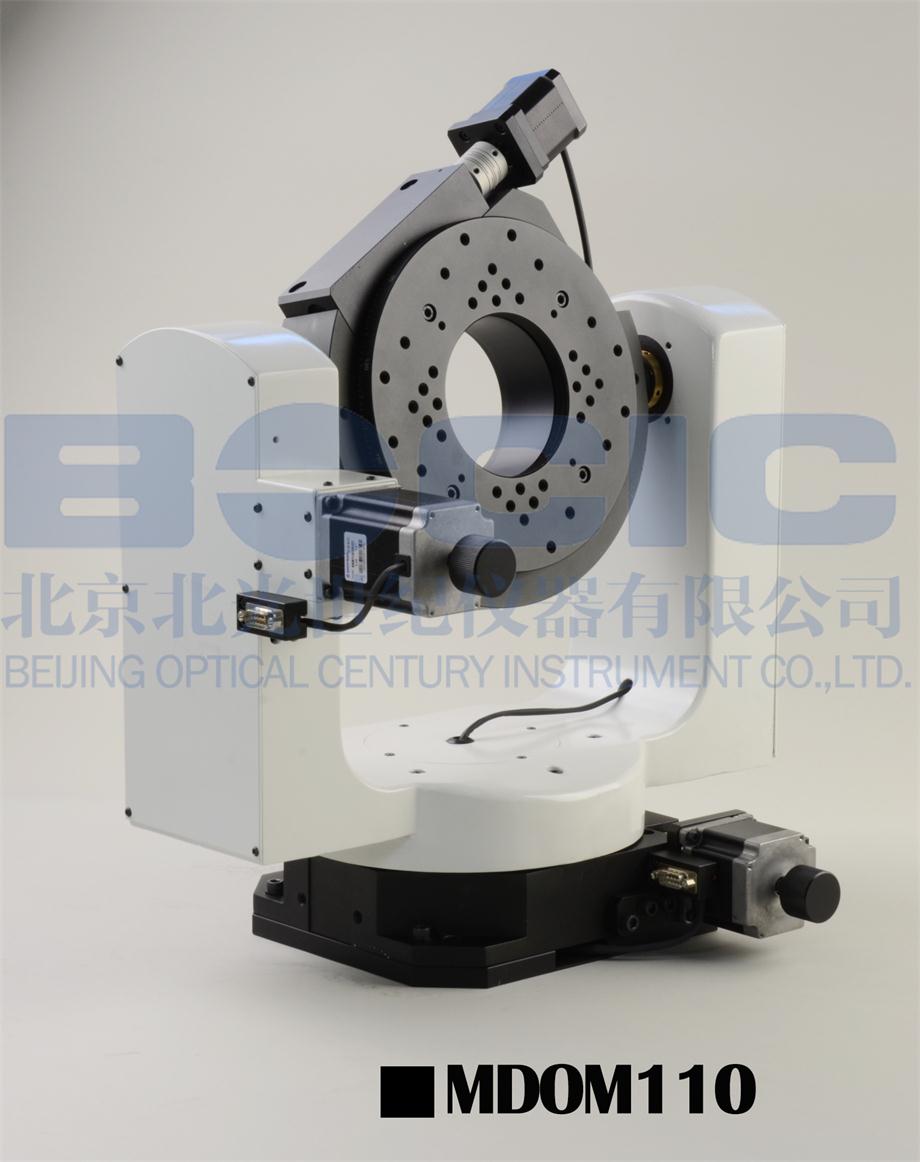

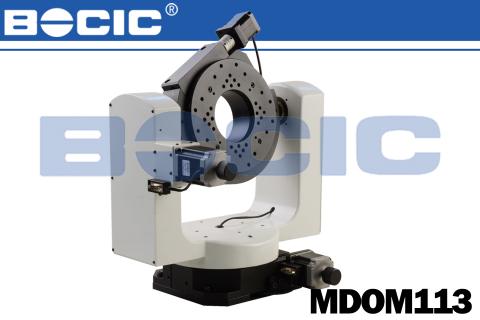

MDOM110 series motorized optical mounts
1.Actuated withworm and worm gear, allowing
for adjustment range of 360°
2. Tri-axial rotation about the same pivot
point ensures the optical distance unchanged.
- description
- parameters
|

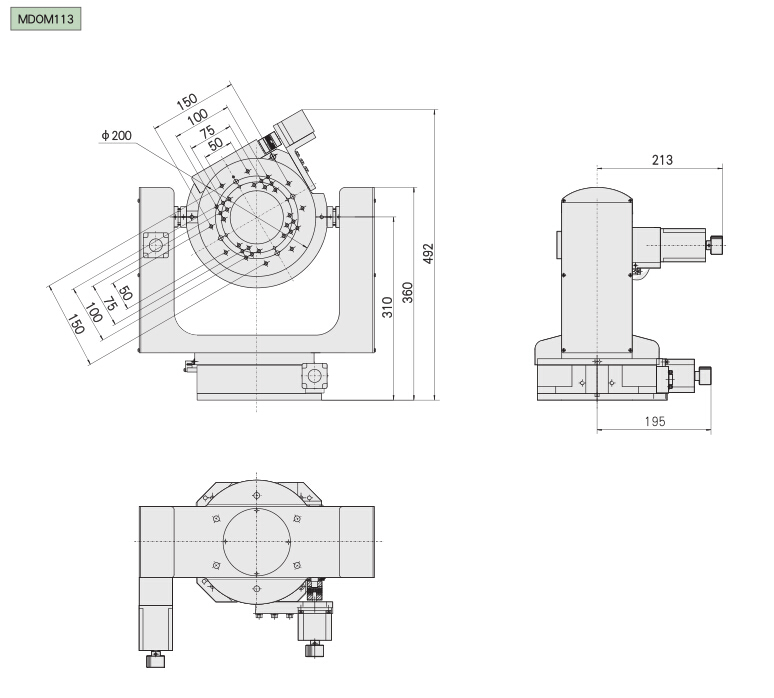

Model |
MDOM113 |
|
|
Applied optic diameter (mm) |
Φ90 |
|
|
Resolution |
X-axis |
0.00045° |
|
Z-axis |
0.0002° |
|
|
Y-axis |
0.0002° |
|
|
Resetting positioning accuracy |
X-axis |
0.01° |
|
Z-axis |
0.005° |
|
|
Y-axis |
0.005° |
|
|
Driving |
worm and worm gear |
|
|
Gear Ratio , Maximum speed |
X-axis |
80：1 / 22°/s |
|
Y-axis |
180：1 / 20°/s |
|
|
Z-axis |
180：1 / 20°/s |
|
|
Stepper motor |
X-axis |
56stepper motor |
|
Y-axis |
42 stepper motor |
|
|
Z-axis |
56 stepper motor |
|
|
Loading capacity（kg） |
10 |
|
|
Fine adjustment |
360° |
|
|
Weight（kg） |
26 |
|
