LA100 series linear actuators
1.The main body is made by of high precision aluminum tube.
2.Driving by Actuated with high precisionball screw rod, Moving by and stepper motor. controllers.
3. Small size design andwith high thrust .
- description
- parameters
|
Model |
LA101 |
LA102 |
|
Travel（mm） |
100 |
200 |
|

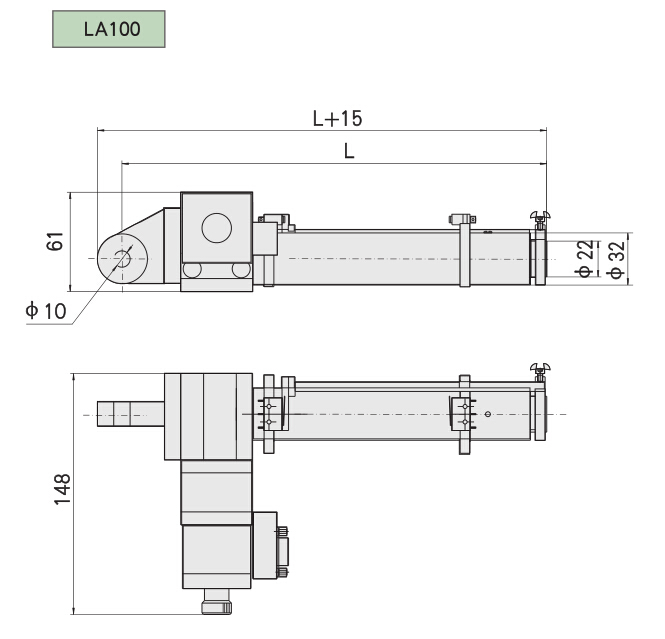

Size L (mm) |
260 |
360 |
|
Resolution(mm) |
0.00005 |
|
|
Maximum speed |
0.6 |
|
|
Resetting positioning accuracy (mm) |
＜0.005 |
|
|
Stepper motor（1.8°） |
42 stepper motor |
|
|
Thrust (N) |
1000 |
|
|
Weight（kg） |
1.3 |
1.5 |
